1400bar Electric Motor Hydro Blaster with 40LPM Flow for Industrial Water Jet Cleaning
| MOQ: | 1 Set |
| Price: | USD 18,000 - 28,000 / Set |
| Standard Packaging: | Export-grade plywood case with motor protection bracket, moisture-proof wrapping, fumigation-free |
| Delivery Period: | 25-35 working days after deposit |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 25 Sets per Month |
Detail Information
Place of Origin
Henan, China
Brand Name
XUZHIYANG
Certification
CE, ISO 9001:2015
Model Number
XZY-1400-40
Max Pressure:
1400 Bar (20,300 PSI)
Water Flow Rate:
40 L/min (10.6 GPM)
Motor Power:
132 KW Electric Motor
Pump Type:
Five Plunger Industrial Pump
Plunger Diameter:
22 Mm
Plunger Stroke:
120 Mm
Pump Speed:
366 Rpm
Mounting:
Skid Frame
Voltage:
380V / 400V / 440V 50/60Hz 3-Phase
Application:
Industrial Tube Bundle, Heat Exchanger, Condenser Tube Cleaning
Highlight:
1400bar Hydro Blaster
,40LPM Water Jetting Equipment
,Electric Motor Industrial Water Jet Cleaning Machine
Product Description

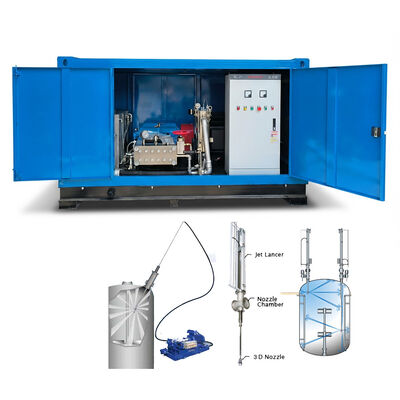

1400bar Electric Five Plunger Hydro Blaster
XZY-EFP1400-40 | 40LPM | Indoor Industrial Tube Cleaning
Product Overview
The XUZHIYANG XZY-1400-40 combines electric motor drive with five plunger pump technology to deliver 1400 bar at 40LPM for industrial tube pipe cleaning. This electric-powered configuration is ideal for indoor workshop and factory floor applications where zero emissions and lower noise are required. The five plunger design ensures smooth flow delivery with minimal pulsation, reducing operator fatigue and extending hose life in demanding tube bundle cleaning operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Pressure | 1400 bar (20,300 PSI) |
| Water Flow Rate | 40 L/min (10.6 GPM) |
| Motor Power | 132 KW Electric Motor (3-Phase) |
| Pump Type | Five Plunger Industrial Pump |
| Plunger Diameter | 22 mm |
| Plunger Stroke | 120 mm |
| Pump Speed | 366 rpm |
| Voltage Options | 380V / 400V / 440V (50/60Hz) |
| Mounting | Skid Frame with Forklift Pockets |
| Noise Level | < 85 dB(A) at 1m |
Key Benefits
- Zero Emissions: Electric motor drive suitable for enclosed workshop cleaning bays
- Low Pulsation: Five plunger pump delivers 40% less pulsation than triplex designs
- Continuous Operation: Electric motor enables unlimited runtime without refueling
- Lower Noise: Ideal for noise-sensitive environments and indoor workshops
- Reduced Operating Cost: Electric power typically 40-60% cheaper than diesel per operating hour
- IE3 Motor Option: Premium efficiency motor available for energy-conscious operations
Applications
- Heat exchanger tube bundle hydro blasting in workshop cleaning bays
- Condenser and chiller tube mechanical cleaning with rigid lances
- Reactor and pressure vessel internal surface preparation
- Preventive maintenance tube cleaning for process equipment
- Boiler tube descaling and internal surface restoration
Experience the five plunger difference. Request a live demonstration or detailed technical proposal.
