Safety High Pressure Test Pump , Hydrostatic Test Pump For Critical Infrastructure
| MOQ: | 1 |
| Price: | DISCUSS |
| Standard Packaging: | WOODEN CASE |
| Delivery Period: | 5-8 DAYS |
| Payment Method: | T/T,Western Union,MoneyGram |
| Supply Capacity: | 200SETS/MONTH |
Safety High Pressure Test Pump
,Hydrostatic Testing Pump
,Infrastructure Hydrostatic Test Pump
Hydrostatic Test Pumps High Pressure Testing Systems For Critical Infrastructure

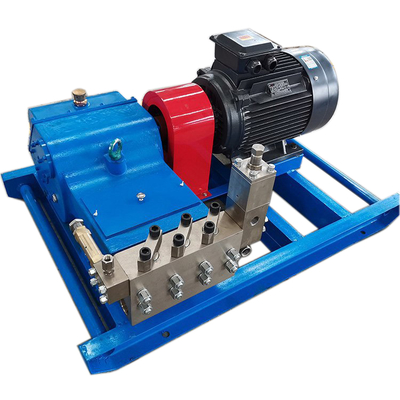

High Pressure Pump Three Plunger High Pressure Test Pump
Precision Pressure Testing Systems for Critical Infrastructure
Pressure test pumps (hydrostatic test pumps) are engineered to verify the structural integrity and leak-tightness of pipelines, valves, vessels, and process equipment. Utilizing positive displacement plunger technology, these pumps deliver ultra-stable pressure (up to 10,000 PSI) with ≤±1% fluctuation for ISO 5208, ASME B31.3, and API 598 compliance testing.
Core Applications & Technical Requirements
| Application Sector | Test Pressure Range | Flow Rate | Critical Features |
|---|---|---|---|
| Oil & Gas Pipelines | 100–3,000 bar | 5–40 L/min | Diesel-driven, ATEX Zone 1 certification |
| Chemical Process Valves | 50–600 bar | 3–15 L/min | Acid-resistant seals, PTFE hoses |
| Power Plant Boilers | 200–500 bar | 10–30 L/min | Auto-shutoff at target pressure, data logging |
| Water Distribution Mains | 10–25 bar | 80–220 L/min | High-flow centrifugal stages, chlorine resistance |
| Aerospace Components | 400–1,500 bar | 0.5–5 L/min | Aerospace-grade gauges (0.25% accuracy) |
XUZHIYANG Pressure Test Pump Series – Technical Specifications
| Model | Max Pressure | Flow Rate | Power | Compliance | Unique Technologies |
|---|---|---|---|---|---|
| XZY-300 | 3,000 bar | 15 L/min | 30 kW Electric | ASME B31.1 / PED 2014/68/EU | • Digital pressure ramping control • WiFi/4G remote monitoring |
| XZY-80 | 800 bar | 85 L/min | 575 kW Diesel | API 6D / ISO 5208 | • Dual-pump cascading system • H₂S-resistant coating |
| XZY-15 | 150 bar | 220 L/min | 75 kW Electric | EN 12266-1 / AWWA C509 | • Self-priming (8m suction head) • Multi-test sequence programming |
Key Advantages vs. Conventional Methods
✅ Zero Surge Damage
-
Stepless pressure ramp control (0.1 bar/sec increments) prevents water hammer.
✅ Intelligent Safety -
Dual redundant relief valves + auto-depressurization if leakage detected.
✅ Multi-Fluid Compatibility -
Test media: Water, glycol, diesel, inert gases (N₂/He).
✅ Extreme Environment Ready -
Operates at -40°C to 80°C (arctic pipelines to desert sites).
Product Main uses:
● Coal seam mining water injection
● Oil mining water injection
● Oil field pipeline pressure test
● Ship repair cleaning
● Chemical pipeline cleaning
● Metallurgy high-pressure phosphorus removal
